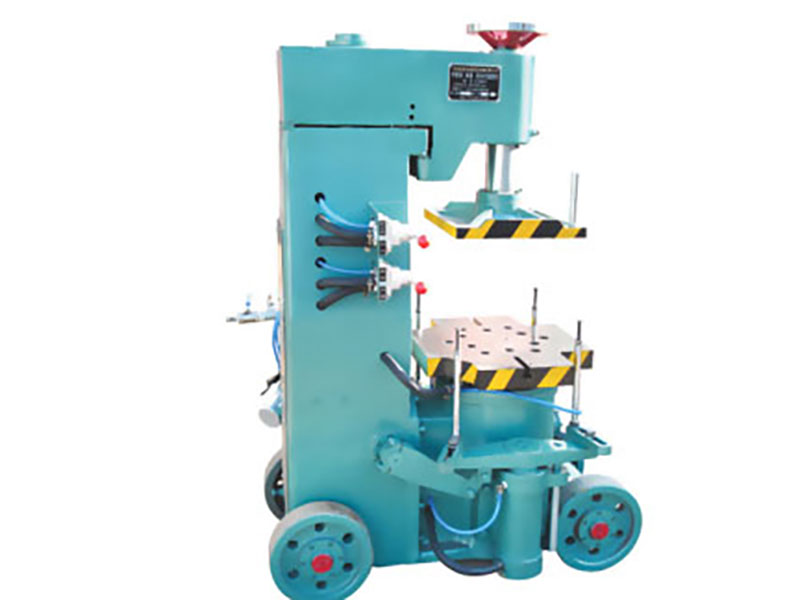

Products Description
The machine adopt cylinder, crank , ,connecting rod, synchronizing shaft achieve molding synchronously control part,all pneumatic components used to achieve the overall functionality,simple operation,easy maintenance.it is easy to operate,visual sand , the operational procedures can be humance and effective to increase productivity
Technical parameter
| Item | Unit | Z143WA | Z145WA | Z145WB |
| Max dimensions of Foundry flask | mm | 500x400x200 | 500x450x200 | 550x450x200 |
| Worktable dimension | mm | 560x420 | 600x550 | 700x550 |
| Jolting load | kgf | 200 | 300 | 300 |
| Compressive stress | kgf | 4200 | 6800 | 6800 |
| Compress process | mm | 200 | 160 | 160 |
| Moulding process | mm | 160 | 200 | 200 |
| productivity | Box/hour | 40-60 | 40-60 | 40-60 |
| Dia of jolting cylinder | Фmm | Ф150 | Ф150 | Ф150 |
| Consumption of free air | M3/BOX | 0.25 | 0.4 | 0.4 |
| Outline dimention(LXWxH) | mm | 1300x800x1700 | 1200x800x1680 |
