Products Description
It is mainly used for surface treatment(namely preheating,rust removal,paint spraying and drying )of steel plate and various structural sections,as well as for cleaning and srenghening of metal structure parts.
Roller hearth blasting has the following advantages:
Improving corrosion resistance of mechanical products and metal profiles
Improving the fatigue resistance of steel and prolonging its service life.
Optimization of steel surface technology
It is good for cutting and precision blanking of CNC cutting machine.
Because the shape of steel is regular before being processed, it is advantageous to mechanical rust removal and automatic spraying anti-rust paint.
Greatly improving cleanup efficiency
Reduce labor intensity in cleaning up work
Lessen environmental pollution

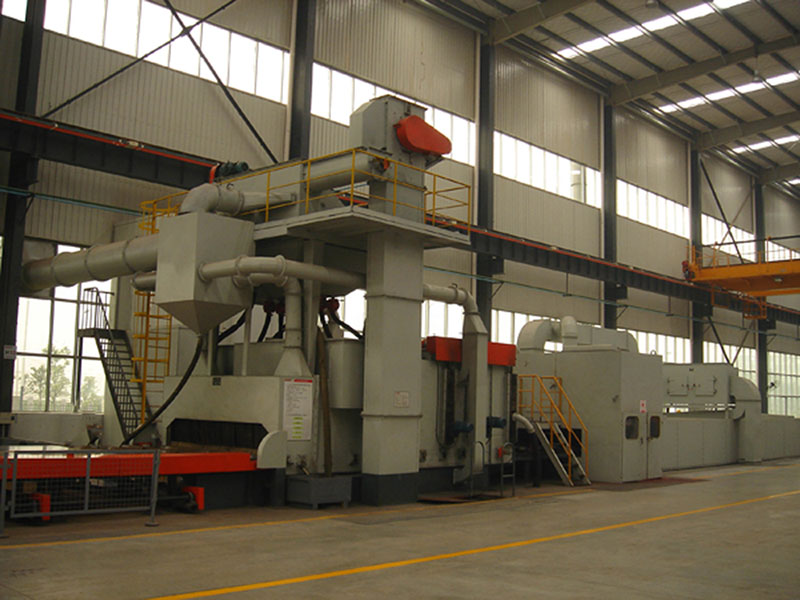

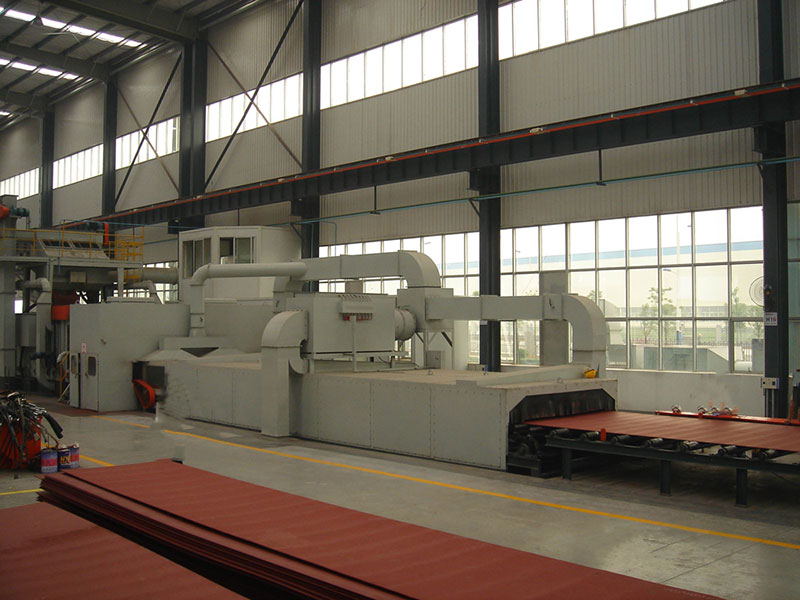

| Q69 Roller Conveyor Steel Plate Shot Blasting Machine From Changjia Manufaturer | |||||||||
| No | Item | Unit | Q6910 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 | Q6940 |
| 1 | Effective Cleaning Width | mm | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| 2 | Size of inlet opening | mm | 1000x260 | 1200x400 | 1500x400 | 2000x400 | 2500x800 | 3000x800 | 4000x400 |
| 3 | Length of plate | m | 1.2-12 | 1.2-12 | 1.2-6 | 1.2-12 | 3-12 | 2.4-12 | 4.5-18 |
| 4 | Roll conveying speed(frequency control) | m/min | 0.5-4 | 0.5-4 | 0.5-5 | 0.5-4 | 0.5-4 | 0.5-4 | 2-8 |
| 5 | Thickness of plate | mm | 4-60 | 4-60 | 4-60 | 4-60 | 4-60 | 4-110 | 4.5-100 |
| 6 | Processing profile specification | {≤20#<≤16#} | {≤20#<≤16#} | {≤20#<≤16#} | 60x8-30x1000 | ||||
| 7 | Abrasive Volume | Kg/min | 4x250 | 4x250 | 4x250 | 4x250 | 6x250 | 6x360 | 8x360 |
| 8 | Initial Load | kg | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
| 9 | Brush regulating height | mm | 200 | 350 | 450 | 600 | 850 | 900 | |
| 10 | Ventilation | M3/h | 12000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
| 11 | Total Power (excluding dust collector) | kw | 78 | 78.3 | 113.5 | 156.6 | 224.55 | 204.8 | 293.6 |
