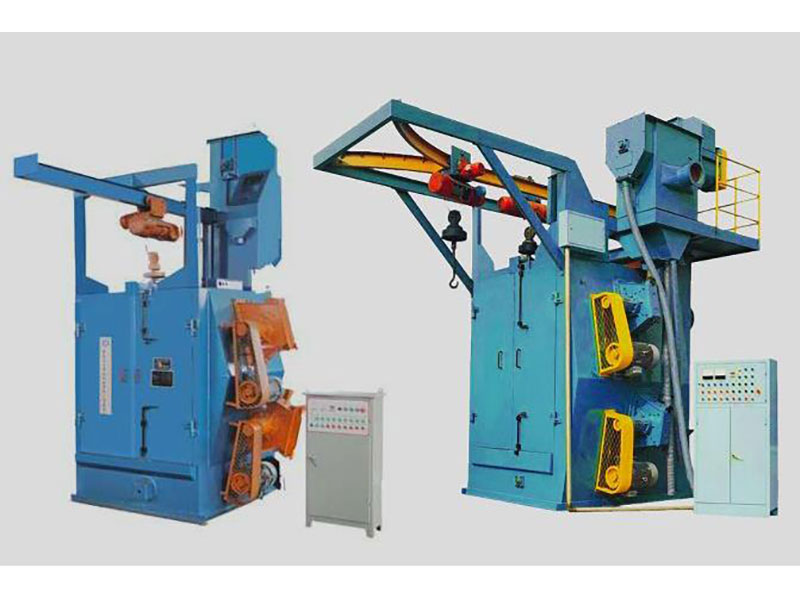

Q37 Series Double Hanger Hook Shot Blasting Machine For Cast-AMYLAN INDUSTRIAL

Products Description

Q37 series hook type shot blasting machine is mainly used for surface cleaning and strengthening of steel strutural parts,casting ,aluminum alloy parts and other parts.widely used in casting, forging, steel and other industries.

Has the characteristics of compact structure,higher productivity.

Q37 Series Abrator technical parameters
No	Item Unit		Q376F	Q378	Q3710	Q3720	Q3730
1	Size of pieces	mm	￠600X1100	￠800X1500	￠900X1600	￠1400X2300	￠1600X2200
2	Weight capacity of single hook	kg	600	1000	1000	2000	3000
3	Abrasive flow rate	Kg/min	2x120	2x200	2x250	3x250	4x250
4	Lifting capacity	t/h	15	22	30	45	45
5	Separationg capacity	t/h	15	22	30	45	45
6	Ventilation capacity	m³/h	5000	8000	9000	15000	18000
7	Power	kw	19	32.5	36.55	61.27	64.4

Q37 Series Abrator technical parameters
No	Unit Item		Q3750	Q3780	Q37100	Q37160	Q37200	Q37300
8	Size of pieces	mm	￠1800X2500	￠2000X3000	￠2500X3500	￠2600X4000	￠3000X6000	￠3500X5000
9	Weight capacity of single hook	kg	5000	8000	10000	16000	20000	30000
10	Abrasive flow rate	Kg/min	4x250	4x250	5x250	6x250	7x250	7X250
11	Lifting capacity	t/h	60	60	75	90	110	110
12	Separating capacity	t/h	60	60	75	90	110	110
13	Ventilation capacity	m³/h	18000	20000	22000	25000	30000	30000
14	Power	kw	78.4	81.5	105	130	150	160
