Products Description

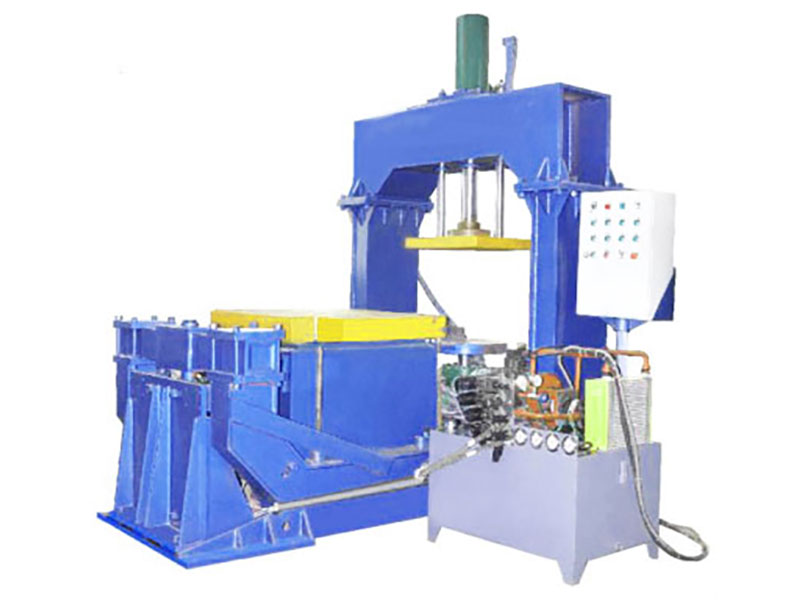

Microseism squeeze molding machine,optimal design of aircraft structures,the machine using the fuselage box structure basket to improve the body of the steel.
It adopt microseism squeeze molding technics used to significantly increase the pressure and the strength to make up hardness HB90 sandbox more than one level to increase surface roughness.
Technical parameters
| Item | Unit | Z1410 |
| Max dimensions of worktable | mm | 1400x1030 |
| Max size of sandbox | mm | 1000x800x350 |
| Compress stress | t | 0-100 |
| Compress process | mm | 300 |
| Moulding process | mm | 300 |
| Max distance between board and table | mm | 750 |
| productivity | Box/H | 20-40 |
| Outline dimensions(LXWXH) | MM | 3430X2000X3250 |
