Products Description

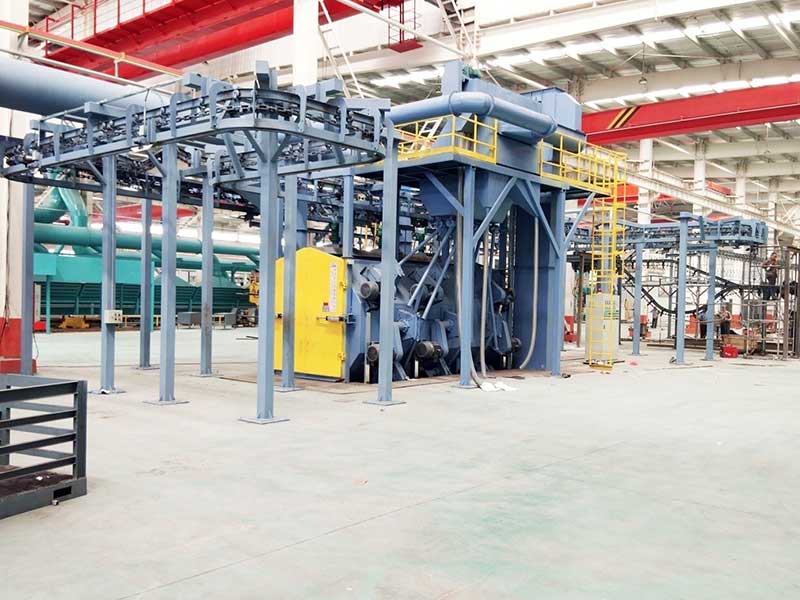

Q58 Accumulative catenary sand blast machines is suitable for shot blasting of castings, forgings, stampings and structural parts for mass production, which can remove dirt, rust, scale and other dirt on the surface of the workpiece to make the surface of the workpiece metallic, eliminate internal stress, improve fatigue resistance and increase the adhesion of paint film during spraying. The machine can run continuously or intermittently, and the multi-station fixed-point workpiece can be cleaned by rotating shot blasting. The cleaning effect is good and the production efficiency is high.
Q58 Accumulative catenary sand blast machines | |||||
Item Type | Q583 | Q585 | Q5810 | ||
1 | Workpiece size（Φ*H） | mm | Φ800*1500 | Φ1200*1800 | Φ1400*2400 |
2 | Capacity of single hook | kg | 300 | 500 | 1000 |
3 | Station | set | 2 | 3 | 3 |
4 | Productivity | h/h | 12 | 24 | 30 |
5 | Blasting capacity | kg/min | 4*250 | 6*320 | 9*320 |
6 | Ventilation | m³/h | 15000 | 22000 | 30000 |
7 | Power（except dust collector） | kw | 75 | 135 | 198 |
Non-standard customization according to the dimensions and specifications of the cleaned workpiece | |||||
