Products Description

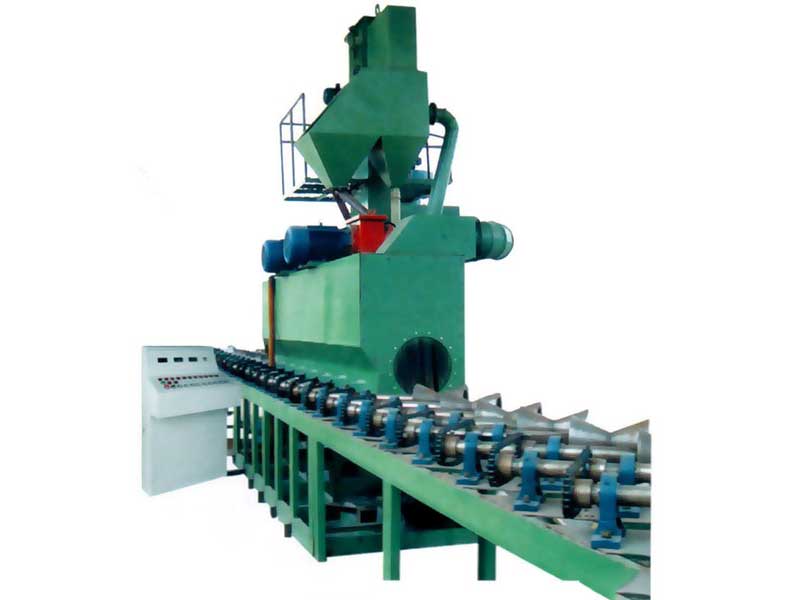

QGW Pipe sandblasting equipment is a new type of special blasting、strengthening and cleaning equipment. It is mainly suitable for the shot blasting treatment of the outer surface of steel pipe and pipe fittings. It can clean up the impurities such as oxide layer, rust and welding slag, show metallic luster, reduce the internal stress of the workpiece, and prepare for surface non-destructive testing and spraying of the workpiece.
QGW Steel Pipe Shot Blasting Machine | ||||||||
Item | Unit | QGW10 | QGW15 | QGW20 | QGW25 | QGW30 | QGW140 | QGW200 |
Size of pipe | mm | ¢30-100 | ¢50-150 | ¢50-200 | ¢50-250 | ¢50-300 | ¢152-1400 | ¢1000-2000 |
Abrasive Volume | Kg/min | 2x250 | 2x250 | 2x250 | 2x250 | 2x250 | 2x1000 | 2x1000 |
Lifting capacity | Kg/min | 30000 | 30000 | 30000 | 30000 | 30000 | 1200000 | 1200000 |
Separating capacity | Kg/min | 30000 | 30000 | 30000 | 30000 | 30000 | 1200000 | 1200000 |
Ventilation Volume | M3/h | 5000 | 5000 | 5000 | 6000 | 6000 | 10000 | 12000 |
Power | kw | 50 | 50 | 50 | 50 | 50 | 115 | 127 |
