Products Description

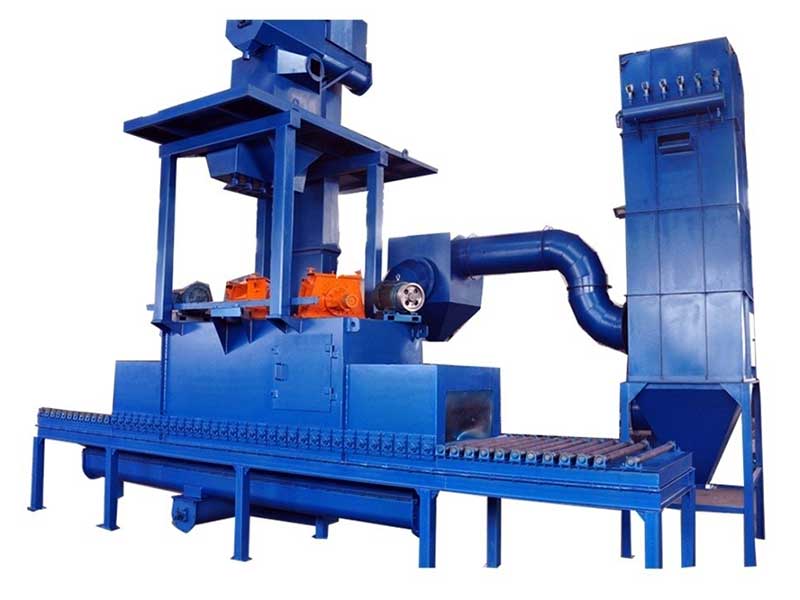

QSC90Stone sandblasting equipment is mainly used for surface texturing processing of marble, tile . Stone shot blasting machine for continuous delivery of high function and continuous cleaning work , handling large quantities, the workpiece loading and unloading on both sides of outdoor .
Separator full curtain type separation technology by using BE USA Pan Bangen company, good separationeffect.
The circulatory system of the whole equipment with automatic detection device. When certain parts ofdysfunctional or stuck, automatic alarm, is the repair personnel to repair.
The workpiece cleaning work to clean up the room by moving track, while moving side to clean up, high degree ofautomation, greatly reducing the labor rate.
Item | Unit | Parameter |
Workpiece | mm | 900x150 |
Shot Volume | Kg/min | 2x120 |
Shot Power | kw | 2x7.5 |
Conveying speed | m/min | 5-20 |
Conveying power | kw | 1.5 |
Lifting capacity | t/h | 15 |
Separating capacity | t/h | 15 |
Screw conveying capacity | t/h | 15 |
Ventilation | m3/h | 7000 |
Blowing fan motor | kw | 4 |
Outline | mm | 9300x4500x4870 |
Total Power | kw | 32 |
Weight | kg | 6825 |
Type of dust collector | MC |
