Products Description
It is suitable for shot blasting on the outer surface of steel pipes and steel pipe products, cleaning up the oxide layer, welding slag and other impurities, showing a metallic luster, in order to facilitate the spraying and coating of workpieces.

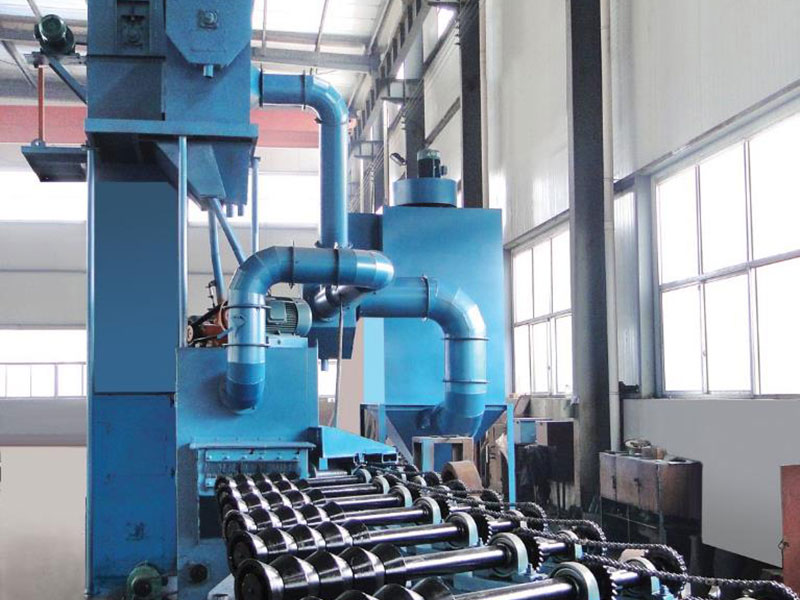

| QGW Steel Pipe Shot Blasting Machine | ||||||||
| Item | Unit | QGW10 | QGW15 | QGW20 | QGW25 | QGW30 | QGW140 | QGW200 |
| Size of pipe | mm | ￠30-100 | ￠50-150 | ￠50-200 | ￠50-250 | ￠50-300 | ￠152-1400 | ￠1000-2000 |
| Abrasive Volume | Kg/min | 2x250 | 2x250 | 2x250 | 2x250 | 2x250 | 2x1000 | 2x1000 |
| Lifting capacity | Kg/min | 30000 | 30000 | 30000 | 30000 | 30000 | 1200000 | 1200000 |
| Separating capacity | Kg/min | 30000 | 30000 | 30000 | 30000 | 30000 | 1200000 | 1200000 |
| Ventilation Volume | M3/h | 5000 | 5000 | 5000 | 6000 | 6000 | 10000 | 12000 |
| Power | kw | 50 | 50 | 50 | 50 | 50 | 115 | 127 |
