Products Description

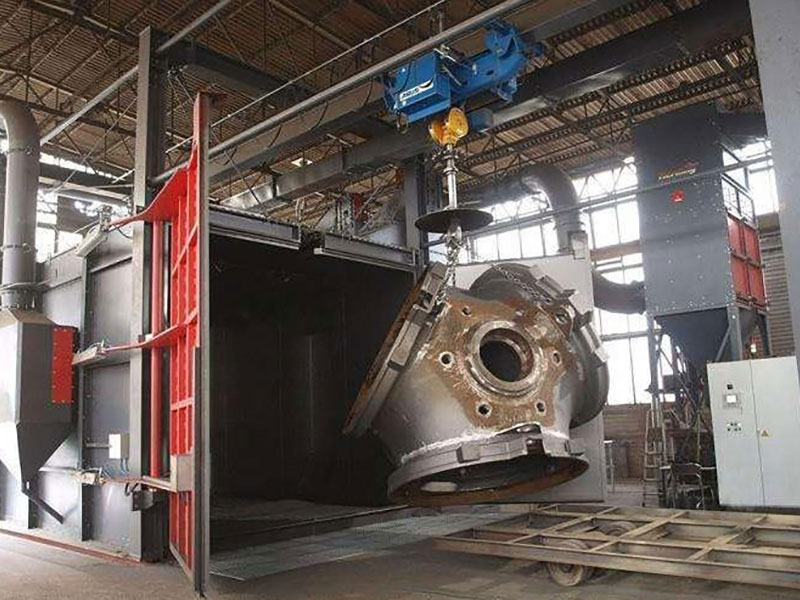

     The Q36 series is our company's stereotype product. It uses the blasting device to throw the high-speed flow of the projectile onto the workpiece surface of the revolving trolley, so as to obtain a certain bright surface. Remove the sticky sand, oxidizing rust layer and other sundries on it, so that it can get a certain glossy surface. This machine is widely used in steel, metallurgy, rolling stock, construction machinery, mining machinery and other manufacturing industries..
      Technical parameter

Q36 Series Trolley Type Shot Blasting Machine
Item Unit Q365C Q3610 Q3620
Size of workpiece mm ¢2500x1300 ¢3500x1500 ¢4000x3000
Load capacity kg 5000 10000 20000
Productivity Kg/h 4000-6000 5000-7000 12000-15000
Abrasive volume Kg/min 2x250 4x250 5x250
Air Consumption m3/min 6.5 6.5 6.5
Lifting capacity t/h 30 60 75
Separating Capacity t/h 30 60 75
Ventilation capacity m3/m 13200 24000 28000
Power(no collector) kw 39.2 140 180
