Products Description

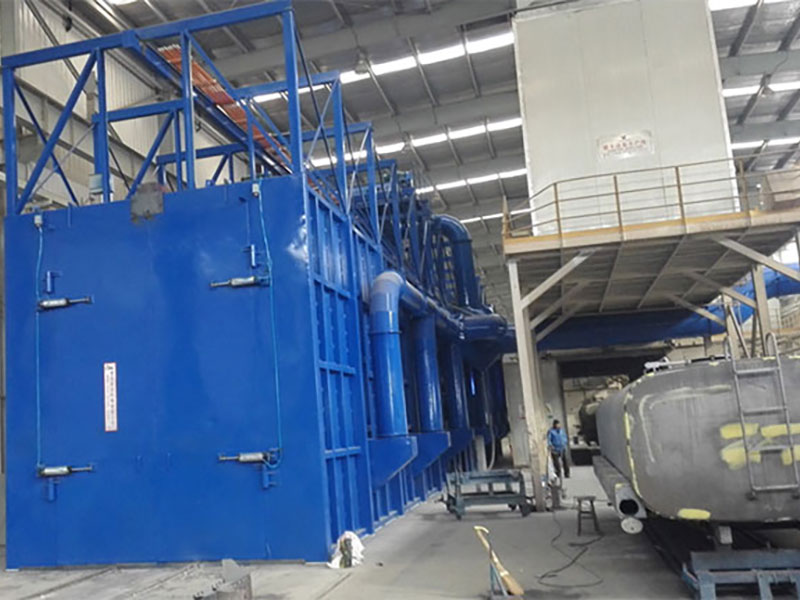

The machine is used for tank cleaning and other large structures, but with coating wiring.
G37 series hook type shot blasting machine is mainly used for surface cleaning and strengthening of steel structural parts, castings, aluminum alloy parts and other spare parts. It is widely used in foundry, forging, mechanical and steel industry. In particular, G378 series features no pit, double hook without rail exchanging, compact structure, and high productivity.
parameter | G376 | G376B | G378C | G3710 | G3720 | G3730 | G3750 | QG37100 |
Max. Weight of cleaning (mm) | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
Max. Overall dimension of workpiece (mm) | Φ600*1200 | Φ700*1200 | Φ1000*1600 | Φ1200*1800 | Φ1400*2200 | Φ1600*2300 | Φ1800*2500 | Φ3000*3000 |
Abrasive flow rate (kg/min) | 2*200 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 5*250 |
Lifting capacity (t/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
Separating capacity (t/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
Approx. Total power (kw) | 22.5 | 23.5 | 39.65 | 47.5 | 56.2 | 65.45 | 85.45 | 97.65 |
Approx. Ventilation capacity (m3/h) | 4000 | 4000 | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |
This machine is not a standard machine, any parameters can be customized according clients’ requirements, so any further informations please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions
