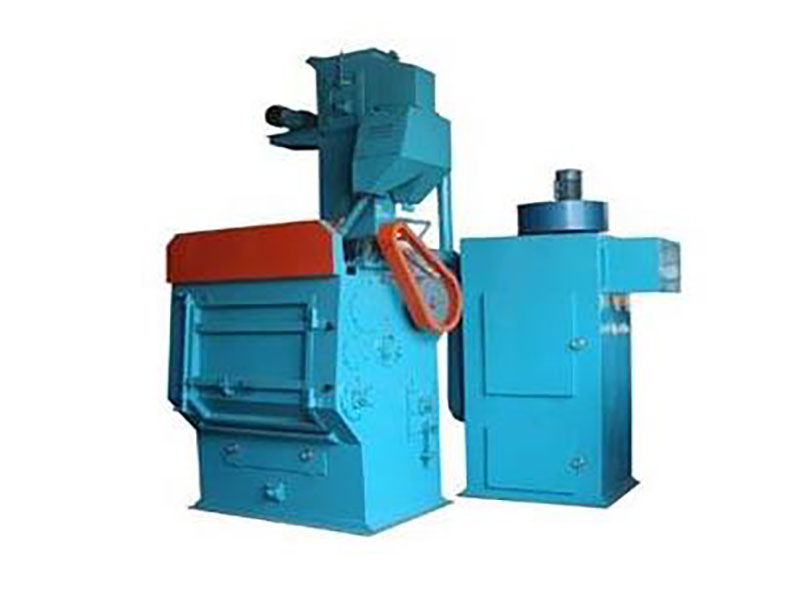

Q32 Tumble Belt Shot Blasting Machine
Q32 Tumble Belt Shot Blasting Machine

Q32 Tumble Belt Shot Blasting Machine

Category: Shot Blasting Machine
Email: info@amylanindustrial.com
Add: No.530,Qidunshan Road,Huangdao District,Qingdao China
Send Inquiry

Products Description

The machine adopts metal (or rubber) crawler which is connected at the end to form a space drum, which makes the workpiece roll continuously in the shot blasting process to achieve the effect of rust removal and dust removal. This machine is mainly used for shot blasting of various forgings, heat treated parts and metal structural parts. It can be used by a single machine or wiring.

This machine is a new product and foreign technology, design and development, a cleaning effect is good, compact, low noise, complete and good cleaning equipment.

Characters of this machine:
1.The Work piece cleared, track reverse automatically discharge, reduce labor intensity of workers.
2.Using winnowing separator, with good separation and higher productivity, to improve the life of the blade has a good effect
3.The use of dust collector, dust emission concentrations below national standards, improve the working environment of workers;
4.The wear-resistant rubber track, reducing the impact and damage phenomenon, reducing the noise

Technical parameters of Q32 series tumble belt shot blasting machine
Series No Item Unit Q326EA Q3210C QR3210A QR3210 15CN
1 Productivity t/h 0.6-1.2 3-5 2-2.5 2-2.5 4-6
2 Feeding amount kg 200 800 600 600 1350
3 Max weight of single weight kg 10 150 30 30 250
4 Dia of end disk mm ∮650 ∮1000 ∮1000 ∮1000 ∮1092
5 Effective Volume cub 0.15 0.4 0.3 0.3 0.43
6 Abrasive flow rate kg/min 120 250 250 180 480
7 Ventilation capacity m/h 2000 6000 3500 3500 6000
8 Belt type \ rubber metal rubber Rubber
(manual)
metal
9 Power consumption kw 12.6 32.6 24.3 15.07 48.5
