Products Description

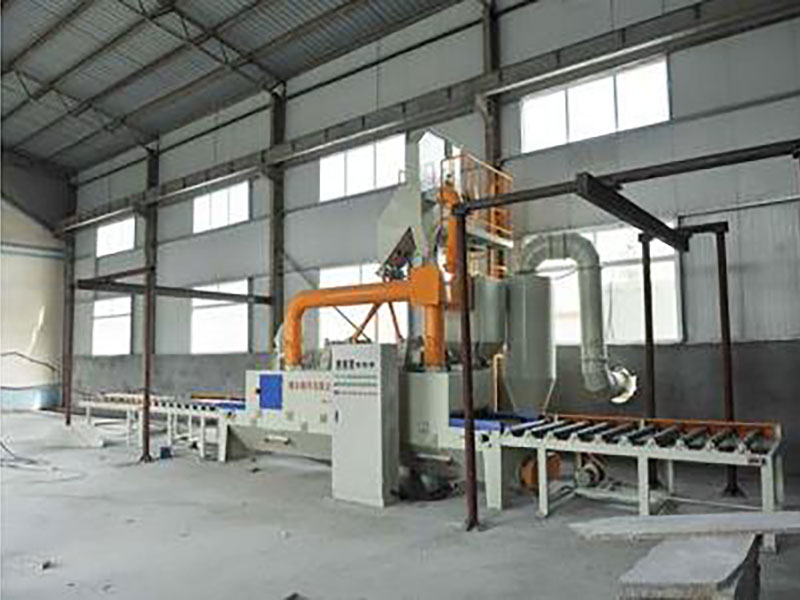

Stone through type shot blasting machine is mainly used for surface texturing processin of marble, tile . Stone shotblasting machine for continuous delivery of high function and continuous cleaning work , handling large quantities, the workpiece loading and unloading on both sides of outdoor .
Technical Parameter
| Item | Unit | Parameter |
| Workpiece | mm | 900x150 |
| Shot Volume | Kg/min | 2x120 |
| Shot Power | kw | 2x7.5 |
| Conveying speed | m/min | 5-20 |
| Conveying power | kw | 1.5 |
| Lifting capacity | t/h | 15 |
| Separating capacity | t/h | 15 |
| Screw conveying capacity | t/h | 15 |
| Ventilation | m3/h | 7000 |
| Blowing fan motor | kw | 4 |
| Outline | mm | 9300x4500x4870 |
| Total Power | kw | 32 |
| Weight | kg | 6825 |
| Type of dust collector | MC |
