Products Description

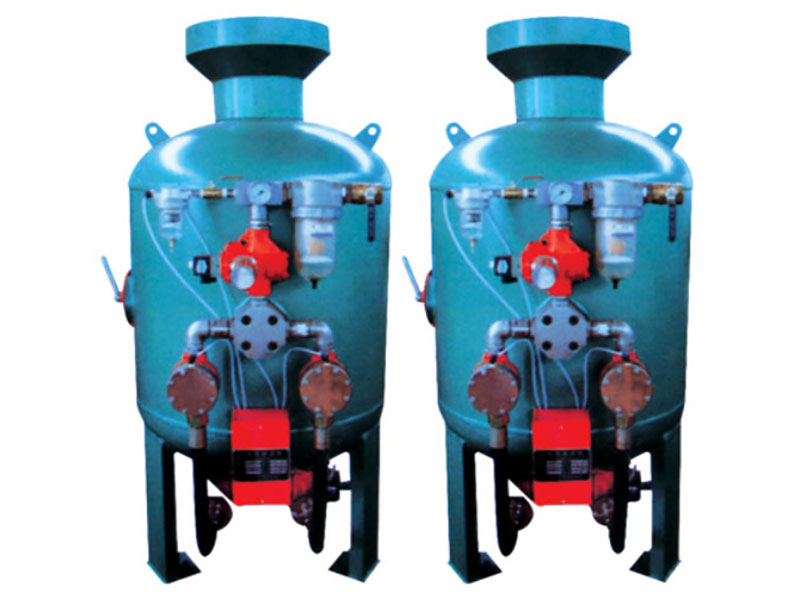

Q02 series new efficient shot blast machine adopts the Japanese thickly blacksmith enriched blast valveechnoiogy, increased the pill gas mixing ratio, increase efficiency by 50%，reduce energy consumption by 38%.002 series shot blasting machine: a single gun intermittent, intermittent double gun, gun for remote control type,doutile the gun for remote control type. And there are all kinds of spray gun and nozzle.
| Technical project | Technical data | Remarks | ||||||
| Q0250 | Q0250-‖ | Q0250-‖-LX | ||||||
| Tank Volume (m3) | 0.5 | 0.67 | 0.8 | |||||
| Dia of compressed air duct | 11/2” | 11/2” | 11/2” | |||||
| Air pressure (Mpa) | 0.5-0.6 | 0.5-0.6 | 0.5-0.6 | |||||
| Shot volume kg/h(nozzle dia 10) | 1800-2000 | One gun | 1800-2000 | A gun | 1800-2000 | |||
| 2 guns | 3600-4400 | 2 guns | 3600-4400 | |||||
| Air consumption(m3/min) | 6.1 | One gun | 6.1 | A gun | 6.1 | |||
| 2 gun | 12.2 | two guns | 12.2 | |||||
| Control type | Remote control | |||||||
| Tube Length(mm) | 7000 | 7000(2pcs) | 7000(2pcs) | Notice lenth when order | ||||
| Size | 1036x812x1860mm | 1120x900x1890mm | 1086x812x2060mm | |||||
| Weight(kg) | 396 | 500 | 690 | |||||
