Products Description

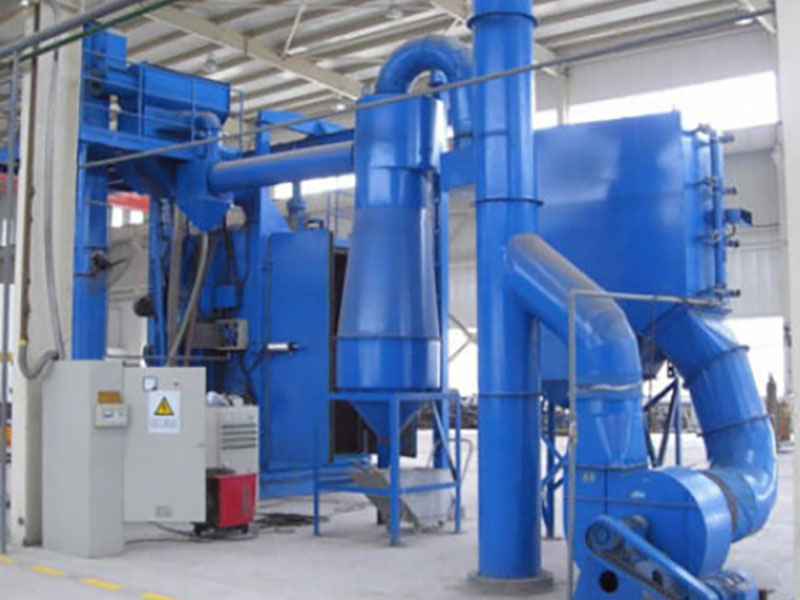

The bag filter and the inverted cone cyclone can be used in series to form a secondary dust removal system when the air volume is matched. It can extend the service life of the bag and increase the handling capacity of dust. The company can design and manufacture connecting pipes and select the supply of fans according to the user's dust removal position.
| Type | Bag qty (pcs) | Filtering area(m2) | Air Handling(m3/h) | Fan model | Fan power(kw) | Backflush power(kw) |
Total Weight (kw) |
| ZCM24 | 24 | 28 | 3120-6240 | CQ21-J | 5.5+0.75 | 2.2 | 1100 |
| ZCM36 | 36 | 47 | 5730-1050 | 4-72NO4.5A | 7.5+0.75 | 2.2 | 1400 |
| ZCM36L | 36 | 60 | 8000-15000 | 4-72NO.5A | 15+0.75 | 2.2 | 1600 |
| ZC70 | 48 | 70 | 8500-17000 | 4-72NO.8C | 11+0.75 | 4 | 3240 |
| ZC100A | 66 | 100 | 12000-24000 | 4-72NO.8C | 11+0.75 | 4 | 5016 |
| ZC100B | 66 | 100 | 12000-21000 | 9-26NO.11.2D | 30+0.75 | 4 | 5075 |
| ZC100C | 66 | 100 | 12000-24000 | 4-72NO.10C | 15+0.75 | 4 | 5116 |
| ZC160A | 66 | 160 | 19200-21000 | 9-26NO.11.2D | 30+0.75 | 4 | 5390 |
| ZC160B | 66 | 160 | 22206-27757 | 9-26NO.11.6D | 45+0.75 | 4 | 6600 |
| ZC230C | 66 | 230 | 26105-36427 | 4-72NO.8C | 37+0.75 | 4 | 4656 |
| ZC230D | 66 | 230 | 34663-46797 | 4-72NO.10C | 37+0.75 | 4 | 4965 |
