Products Description

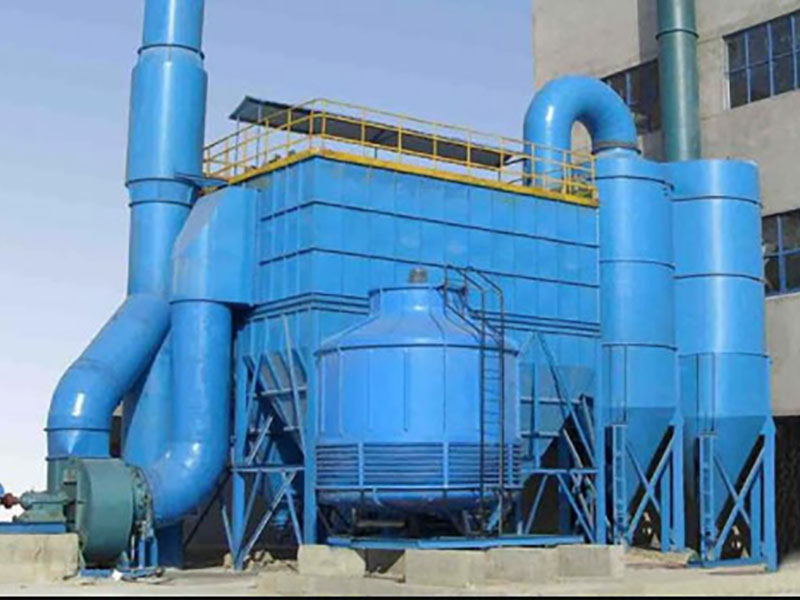

The HR Series Cartridge Dust Collector is primarily used for the collection of suspended dust and particulates. Whether used for air pollution control or as part of the production process, it ensures efficient and continuous online dust collection. The machine has the advantages of stable operation, large air volume, small size and convenient maintenance.
| Vertical | Filtering Area(m2) | Air Handling(m3/h) | Fan model | Fan power(kw) | Total weight(kg) | ||
| LT6 | 90 | 4200 | ZQ21 | 5.5 | 962 | ||
| LT8 | 120 | 5600 | 4-72NO4.5A | 7.5 | 980 | ||
| LT12 | 180 | 8400 | 4-72NO4.5A | 7.5 | 1030 | ||
| LT16 | 240 | 11200 | 4-72NO.5A | 11 | 1080 | ||
| LT18 | 270 | 12600 | 4-72NO.5A | 11 | 1051 | ||
| LT24 | 360 | 16600 | 4-72NO.5A | 18.5 | 1226 | ||
| Side plug | Filtering Area(m2) | Air Handling(m3/h) | Fan model | Fan power(kw) | Cyclone qty(set) | Pulse valve qty(pc) | Total weight(kg) |
| HRX12 | 180 | 8500 | 6 | ||||
| HRX16 | 240 | 11000 | 4-72NO.6C | 11 | 1 | 8 | 2850 |
| HRX24 | 380 | 17000 | 4-72NO.6C | 15 | 2 | 12 | 4630 |
| HRX32 | 480 | 22000 | 4-72NO.6C | 22 | 2 | 16 | 5380 |
| HRX48 | 720 | 34000 | 4-72NO.10C | 30 | 3 | 24 | 7360 |
| HRX64 | 980 | 45000 | 4-72NO.12C | 45 | 4 | 32 | 10300 |
| HRX80 | 1200 | 56000 | 4-72NO.12C | 55 | 4 | 40 | |
